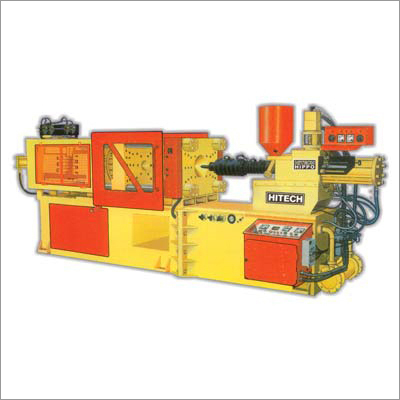

Hitech Hippo - Fat Series

Hitech Hippo - Fat Series
Hitech Hippo - Fat Series
Product Code : 01
Product Description

Hitech Hippo - Fat Series:


DESCRIPTION

UNIT

60-70 FA

80-100 FA

130-200 FA

180-400 FA

250-600 FA

400-1000 FA

450-2000 FA

500-3000 FA

Clamping Force

Ton

60

80

130

180

250

400

450

500

Clamping Stroke

mm

235

340

400

450

485

585

640

840

Plate Dimensions WxH

mm

460x350

585x475

700x600

800x700

850x750

1025x950

1125x1025

1400x1125

Dist. Between Tiebars WxH

mm

305x195

405x295

485x385

560x460

590x490

685x610

775x675

1020x745

Mould Height (Max.-Min.)

mm

305-100

350-125

405-175

460-200

495-225

600-750

650-300

850-350


Screw Diameter

mm

25

34

42

52

60

65

75

80

Injection Stroke

mm

150

150

175

225

250

305

3350

450

Theoretical Shot Volume

C.C.

92

127

238

515

570

1250

2500

3750

Pressure On Melt

Kg/cm2

1850

1850

1850

1850

1850

1850

1800

1800

Plasticizing Capacity

Kg/Hr

18.5

25

40

60

70

80

90

100

Screw Speed

RPM

250

181

147

127

0-127

0-127

0-107

0-107


Hydraulic Pump Motor

HP

5

10

15

20

25

30

40

50

Screw Motor

HP

2.0

3.0

5.0

7.5

Hyd. Only

Hyd. Only

Hyd. Only

Hyd. Only

Heating Capacity

KW

3.6

4.8

5.4

7.0

8.0

11.5

12.0

15











Working Pressure

Bar

140

140

140

140

140

140

140

140

Oil Reservoir Capacity (Approx.)

Ltrs.

200

300

400

500

600

800

900

1000


Approx. Dimensions (LxWxH)

Cm

250x60x145

415x115x165

475x130x165

545x140x180

565x150x225

625x165x225

670x180x225

735x210x225

Approx. Weight

Ton

1.8

3.0

4.5

5.5

6.5

10.0

12.0

15.0


Standard Equipment:

  • Twin Five Points Toggle Clamping System.
  • Heavy duty hard chrome plated Tie Bars.
  • Infinitely variable three stage Opening/Closing Speeds.
  • Dual Guard safety with Electric as well as Hydraulic System.
  • Nitrided Screw and Barrel.
  • Pyrometric Temperature Controls.
  • Independent Injections Speed and Pressure Controls.
  • Manual, Semi & Automatic control Mode selector.
  • Energy Saving Hydraulic Circuit.
  • Shot Counter and Hour meter.
  • Sealed Oil Reservoir with Air Filter.
  • Spru Breaking Facility.
  • Heavy duty Oil Cooler (Water Cooled).

Optional:

  • Programmable Logic Controller.
  • Hydraulic Core Pulling System with Independent Pressure Controls.
  • Pyrometric Temperature Control for Nozzle.
  • Automatic Suckback System for Nozzle Drooling.
  • Single/Multi stroke Hydraulic Ejector System.
  • Electrical/Hydraulic Motorised Mould Height Setting system.
  • Screw, Cold start prevention at insufficient temperature.
  • High torque low speed Hydraulic Screw Motor.
  • Shutoff Nozzle.
  • Pneumatic blow - out device.
  • Low Pressure Clamping (Mould Safety) device to protect the Moulds.
  • Robot Interface Softwares.
  • Oil Temperature Gauge.
  • Digital Temperature Controller.
